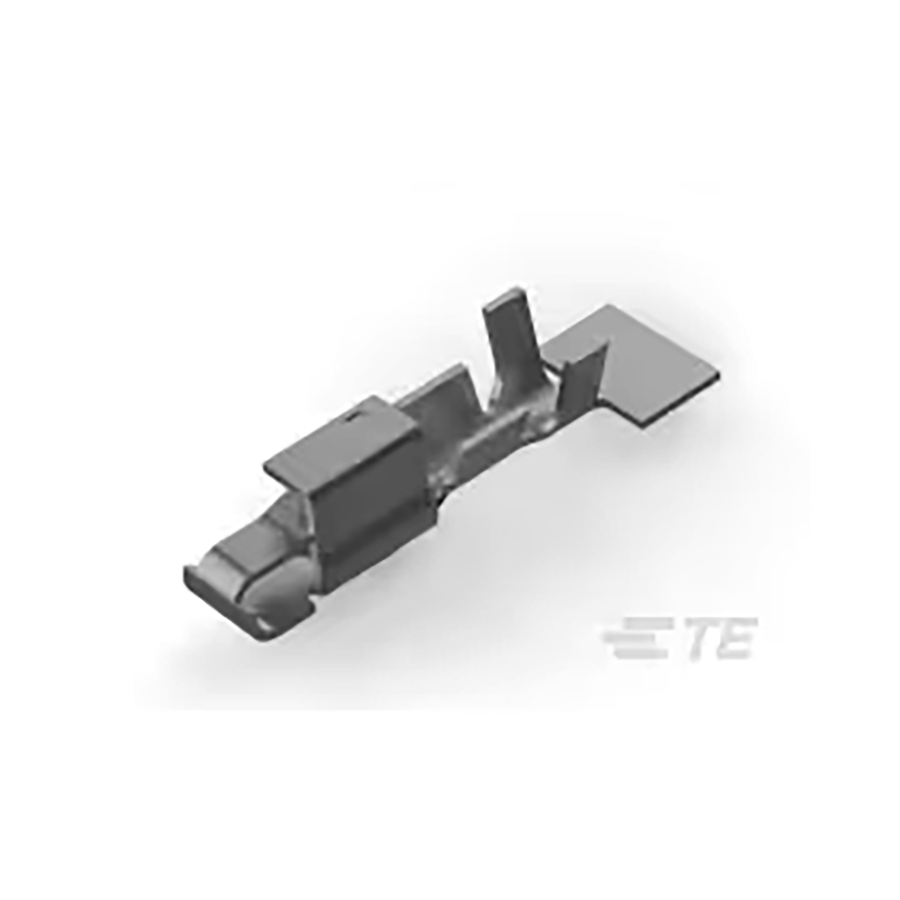

3-770476-1
Manufacturer:
TE Connectivity
Mfr.Part #:
3-770476-1
Datasheet:
Description:
Headers and Wire Housings Cable Socket Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Height | 3.68 mm |
| Packaging | Reel |
| Voltage Rating | 250 V |
| Depth | 3.94 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Tin over Nickel |
| Contact Material(Contact Finish) | Phosphor Bronze |
| Pitch | 2.54 mm |
| Current Rating | 6.5 A |
| Orientation | Straight |
| Operating Supply Voltage | 250 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Gender | Socket (Female) |
| Number of Contacts | 10 |
| Connector Type | Socket |
| Wire/Cable Gauge | 24 AWG to 18 AWG |
| Number of Positions | |
| Number of Rows | |
| Row Spacing | |
| Housing Material | Nylon |
| Wire/Cable Type | Discrete |
| Circuit Application | Power |
| Connector System | Wire-to-Board |
| Contact Style | Standard |
| Contact Resistance | 3 mΩ |
| Contact Current Rating | 10 A |
| Wire Gauge (Max) | 18 AWG |
| Wire Gauge (Min) | 24 AWG |
| Housing Color | Black |
| Plating | Tin |
| Insulation Diameter | 2.79 mm |
| Plating Thickness | 2.03 µm |
| Contact Gender | Female |
| Mating Post Length | |
| Underplate Material | Nickel |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
| Termination Post Length | |
| Termination Style | Crimp |
Stock: 4202
Distributors
pcbx
pcbxUnit Price$0.12754
Ext.Price$0.12754
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.12754 | $0.12754 |
| 10 | $0.06377 | $0.63770 |
| 50 | $0.04905 | $2.45250 |
| 100 | $0.03773 | $3.77300 |
| 500 | $0.03324 | $16.62000 |
| 1000 | $0.02929 | $29.29000 |
| 3000 | $0.02733 | $81.99000 |
| 5000 | $0.02550 | $127.50000 |
| 10000 | $0.02379 | $237.90000 |
| 30000 | $0.02220 | $666.00000 |
| 50000 | $0.02071 | $1035.50000 |
| 100000 | $0.01932 | $1932.00000 |
| 150000 | $0.01802 | $2703.00000 |
